3D Channel Letter Production: Comparing FDM Signage Printers and UV Acrylic Systems

When it comes to manufacturing 3D channel letters, there are two main production methods: large-format Fused Deposition Modeling (FDM) 3D printers and hybrid systems combining 3D printing with liquid UV-curable acrylic. The right solution depends on your production volume, finish quality, and budget.

1. Dedicated FDM Channel Letter 3D Printers

Industrial FDM signage printers are purpose-built for large-scale channel letter fabrication. These machines can print dual-color letters in one continuous process, using weather-resistant materials ideal for outdoor signs and illuminated displays.

Creality K8 3D Printer

• Build Volume: 800 × 800 × 85 mm
• Technology: FDM (Fused Deposition Modeling)
• Highlights: Dual-extruder setup for two-color printing, auto bed leveling, and dedicated channel letter functionality.
• Best For: Large advertising logos and outdoor signage.

Flashforge AD1 Channel Letter 3D Printer

• Build Volume: 600 × 600 mm
• Technology: FDM
• Features: Dual filament feeding for two-color printing, segmented heated bed for energy efficiency, and FlashAD software specialized for signage production.
• Ideal For: Commercial signage workshops and LED channel letter production.

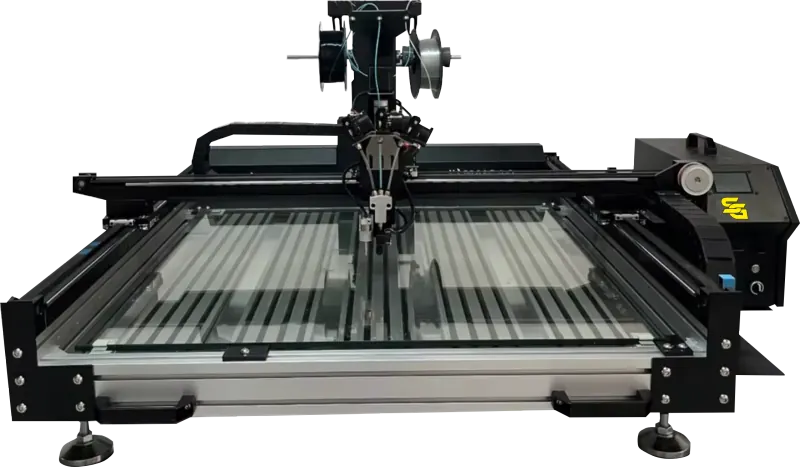

Sign Group SG-S 3D Ultra

• Build Volume: Up to 1200 × 1200 × 100 mm
• Technology: FDM
• Software: Offers an easy to work one-click 3D file generation, no need to have a slicer software.
• Features: Compatible with HFPC (High Flexible Polymer Composite) for durable outdoor signs, and includes optional UV-curing modules for liquid acrylic coatings.
• Perfect For: High-volume, professional signage manufacturers.

2. Hybrid Multi-Material & UV Curing Systems

For premium 3D illuminated channel letters, many manufacturers use a hybrid method that combines FDM printing for the letter body with UV-curable liquid acrylic for the clear or translucent face. This results in a smooth, high-gloss finish ideal for backlit signs and luxury branding.

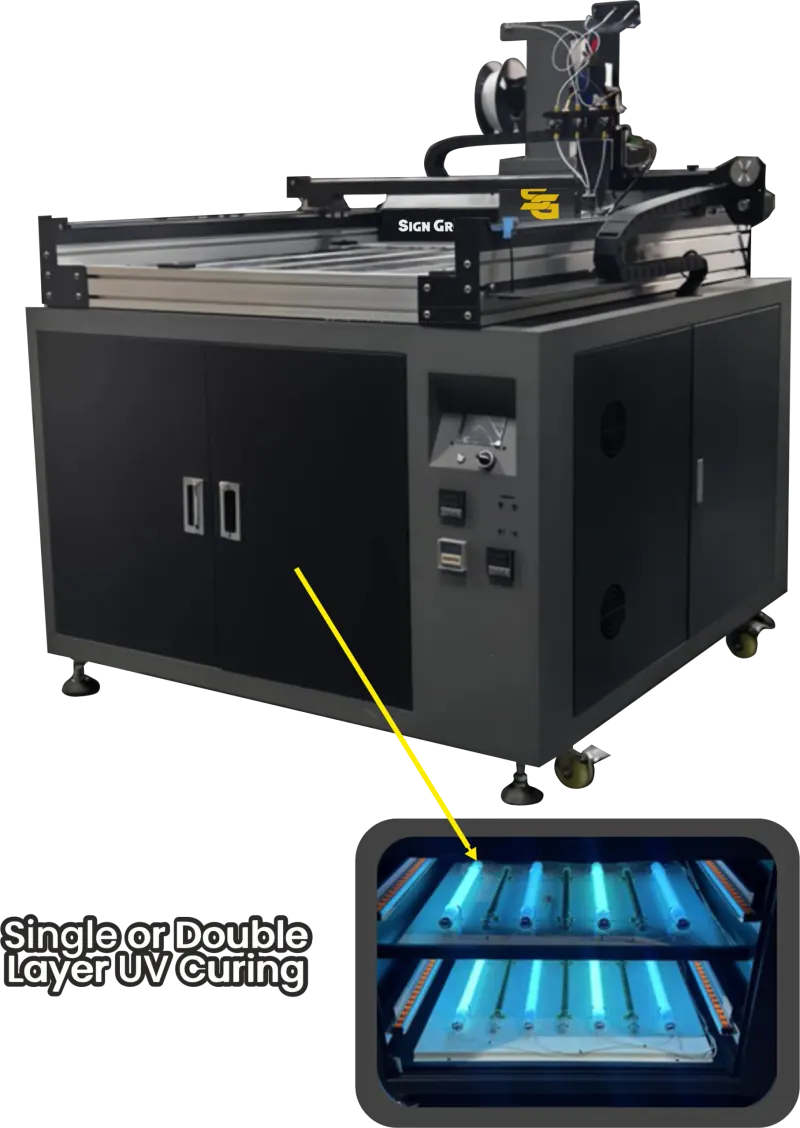

Sign Group SG-S 3D Pro Ultra

• Technology: FDM with integrated UV curing system
• Build Volume: Up to 1200 × 1200 × 100 mm
• Software: Offers an easy to work one-click 3D file generation, no need to have a slicer software.
• Features: Compatible with HFPC (High Flexible Polymer Composite) for durable outdoor signs, and includes UV-curing integrated oven for liquid acrylic coatings and automatically applies a UV-cured acrylic layer for transparent or translucent faces. Option to have Single or Double Layer UV curing.
• Use Case: High-volume professional 3D channel letter production with superior visual quality.

Dongguan Imai YM-AUTO-800

• Technology: FDM with integrated UV curing system
• Build Volume: Up to 800 × 800 × 100 mm
• Features: Prints solid letter bodies and automatically applies a UV-cured acrylic layer for transparent or translucent faces.
• Use Case: Professional 3D channel letter production with superior visual quality.

Creatwit K8 Industrial Set

• Technology: FDM + UV Curing
• Build Volume: Up to 800 × 800 × 85 mm
• Features: Includes a UV oven and advanced design software; supports multiple side and panel styles for illuminated or resin-faced lettering.
• Best For: Custom signage businesses creating backlit or resin-faced 3D letters.

3. Standard Industrial FDM Printers

For smaller operations or custom projects, industrial-grade FDM 3D printers provide a flexible and cost-effective way to produce 3D letters. Look for fully enclosed printers with stable, large build volumes to ensure strong adhesion and long-lasting results.

CreatBot D600 Pro 2 HS

• Price: £16,498.40 (Evo 3D and others)
• Build Volume: 600 × 600 × 600 mm
• Technology: FDM
• Features: Fully enclosed chamber, capable of printing engineering-grade filaments like ASA and ABS for durable, weatherproof signage.

Bambu Lab H2D Laser Full Combo

• Price: £2,949.00 (Bambu Lab UK)
• Build Volume: 512 × 514 × 626 mm
• Technology: FDM
• Features: Dual extruders for multi-material printing, expandable with additional filament systems for advanced multi-color or gradient lettering.

4. Entry-Level 3D Printers for Beginners

If you’re new to 3D channel letter production, start with a user-friendly, enclosed desktop printer. These models are great for learning the basics before scaling up to industrial FDM systems.

Anycubic Kobra S1 Combo

• Price: £435.99 (Techinn and more)
• Technology: FDM
• Features: Automatic levelling, enclosed design to reduce warping, and compatibility with outdoor-rated materials like ASA.
• Best For: Small businesses, hobbyists, and first-time 3D signage creators.

Choosing the Right 3D Channel Letter Printer

• High-volume production: Choose dedicated FDM signage printers like the Creality K8 or SG-S 3D Ultra.
• Premium finishes: Opt for FDM + UV acrylic systems such as the SG-S 3D Pro Ultra.
• Custom or low-volume work: Industrial-grade FDM printers like the CreatBot D600 Pro 2 offer flexibility and durability.
• Beginners: The Anycubic Kobra S1 Combo provides an affordable entry point with reliable results.
