SG-S 3D ULTRA
- Square bed
- 800 / 1200 mm
- Returns up to
- 100 mm
- Colours
- 3 in one print
Channel letter 3D printers · UK
Six 3D sign printers. Two bed sizes.
A 3D sign printer, or channel letter 3D printer, prints the body of a built-up letter straight from a CorelDRAW or DXF file, with no 3D modelling. We sell six for UK sign makers, three models and the Pro version of each: the SG-S 3D ULTRA, L1S and L2S, with 800 × 800 mm or 1200 × 1200 mm beds, returns up to 130 mm and up to four colours in one print, with on-site training included*.
— 01The range
Choose by depth and colours.
Three models, each followed by its Pro version. Every one prints from a CorelDRAW or DXF file, and comes with an 800 × 800 mm or a 1200 × 1200 mm bed. Letters bigger than the bed are printed in sections and joined.
ULTRA and PRO ULTRA
Three colours, returns up to 100 mm. The PRO ULTRA adds liquid acrylic UV curing, single or double layer.

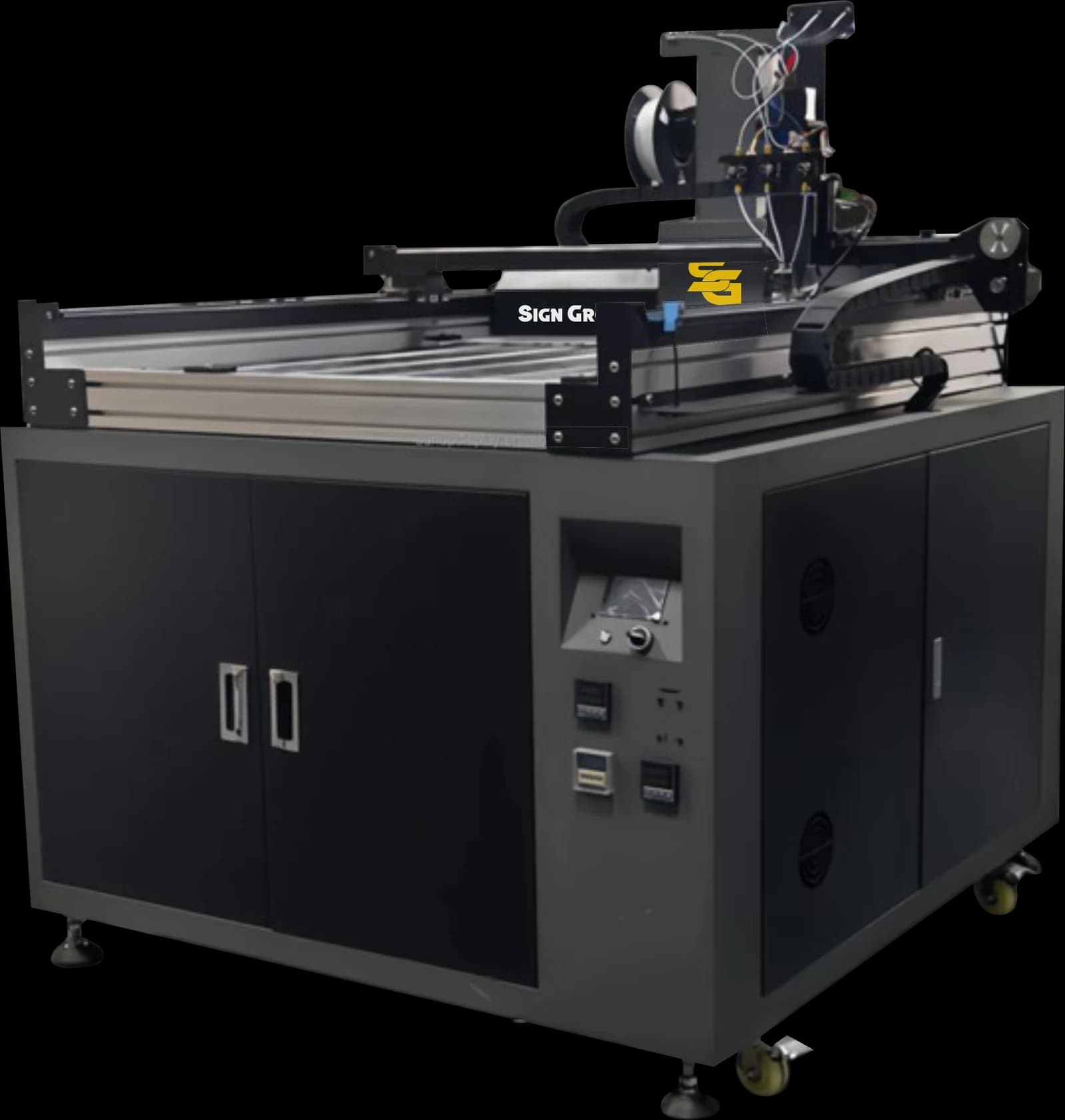

SG-S 3D PRO ULTRA
- Square bed
- 800 / 1200 mm
- Returns up to
- 100 mm
- Colours
- 3, plus UV curing
L1S and L1S PRO
Three colours, returns up to 130 mm, with a filament drier. The L1S PRO adds UV curing, on a closed cabinet.
SG-S 3D L1S
- Square bed
- 800 / 1200 mm
- Returns up to
- 130 mm
- Colours
- 3 in one print
SG-S 3D L1S PRO
- Square bed
- 800 / 1200 mm
- Returns up to
- 130 mm
- Colours
- 3, plus UV curing
L2S and L2S PRO
Four colours in one print, returns up to 130 mm, with a filament drier. The L2S PRO adds UV curing, on a closed cabinet.
SG-S 3D L2S
- Square bed
- 800 / 1200 mm
- Returns up to
- 130 mm
- Colours
- 4 in one print

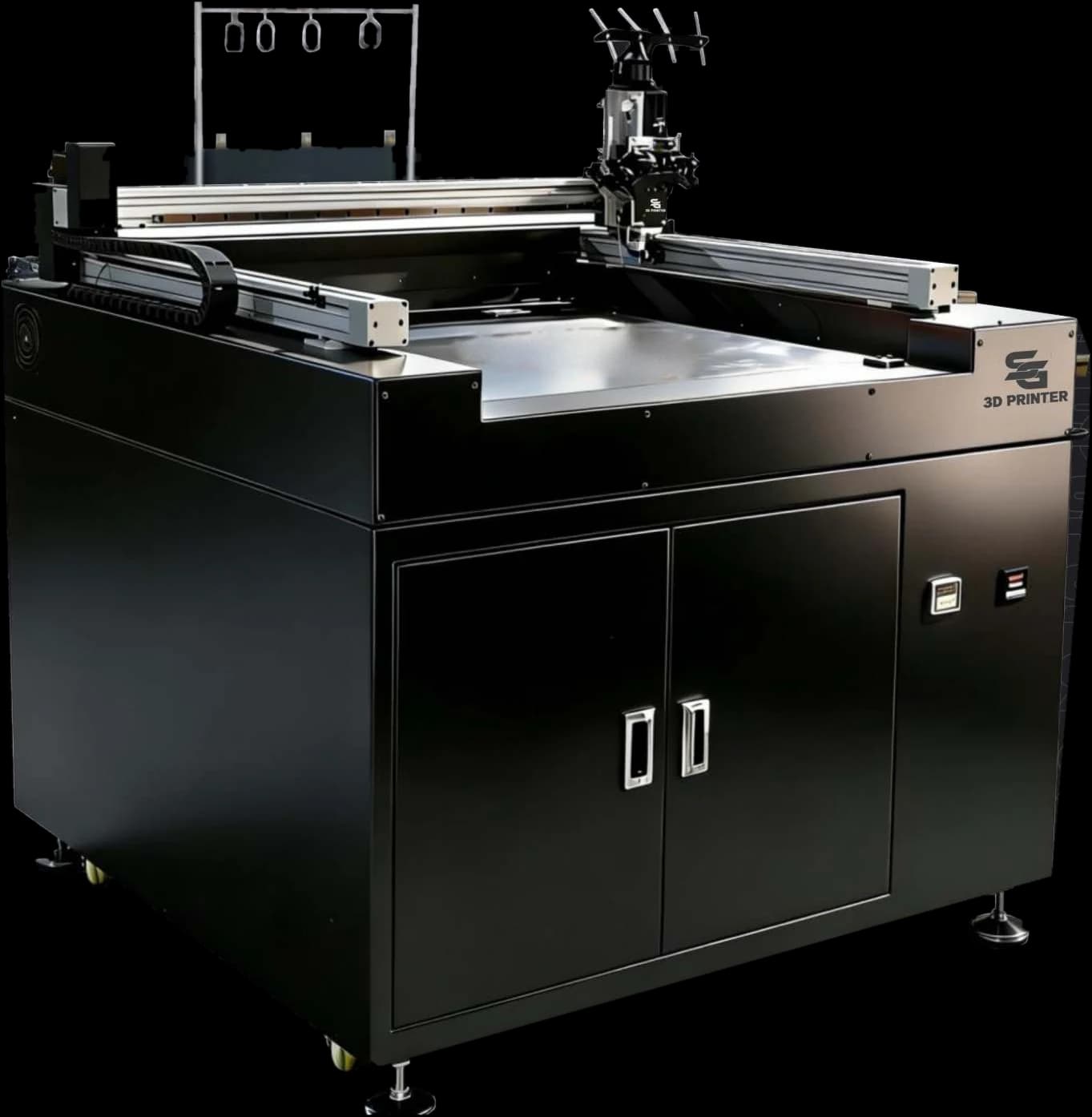

SG-S 3D L2S PRO
- Square bed
- 800 / 1200 mm
- Returns up to
- 130 mm
- Colours
- 4, plus UV curing
— 02Compare
Every spec, side by side.
Every machine with both bed sizes, based on the manufacturer's catalogue (2026). Switch to inches, or show one bed size at a time. Ask us for a price on any of them.
| ULTRA800 × 800 mm | ULTRA1200 × 1200 mm | PRO ULTRA800 × 800 mm | PRO ULTRA1200 × 1200 mm | L1S800 × 800 mm | L1S1200 × 1200 mm | L1S PRO800 × 800 mm | L1S PRO1200 × 1200 mm | L2S800 × 800 mm | L2S1200 × 1200 mm | L2S PRO800 × 800 mm | L2S PRO1200 × 1200 mm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price | ||||||||||||
| Price | Get a price: SG-S 3D ULTRA, 800 × 800 mm bed | Get a price: SG-S 3D ULTRA, 1200 × 1200 mm bed | Get a price: SG-S 3D PRO ULTRA, 800 × 800 mm bed | Get a price: SG-S 3D PRO ULTRA, 1200 × 1200 mm bed | Get a price: SG-S 3D L1S, 800 × 800 mm bed | Get a price: SG-S 3D L1S, 1200 × 1200 mm bed | Get a price: SG-S 3D L1S PRO, 800 × 800 mm bed | Get a price: SG-S 3D L1S PRO, 1200 × 1200 mm bed | Get a price: SG-S 3D L2S, 800 × 800 mm bed | Get a price: SG-S 3D L2S, 1200 × 1200 mm bed | Get a price: SG-S 3D L2S PRO, 800 × 800 mm bed | Get a price: SG-S 3D L2S PRO, 1200 × 1200 mm bed |
| Build | ||||||||||||
| Build volume | 800 × 800 × 100 mm | 1200 × 1200 × 100 mm | 800 × 800 × 100 mm | 1200 × 1200 × 100 mm | 800 × 800 × 130 mm | 1200 × 1200 × 130 mm | 800 × 800 × 130 mm | 1200 × 1200 × 130 mm | 800 × 800 × 130 mm | 1200 × 1200 × 130 mm | 800 × 800 × 130 mm | 1200 × 1200 × 130 mm |
| Returns up to | 100 mm | 100 mm | 100 mm | 100 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Recommended printing speed | 40–120 mm/s | 40–120 mm/s | 40–120 mm/s | 40–120 mm/s | 40–300 mm/s | 40–300 mm/s | 40–300 mm/s | 40–300 mm/s | 40–300 mm/s | 40–300 mm/s | 40–300 mm/s | 40–300 mm/s |
| Layer resolution | 100 µmEvery machine | |||||||||||
| Forming technology | Fused Deposition Modelling (FDM)Every machine | |||||||||||
| Heads | ||||||||||||
| Colours in one print | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| Extruder head | 3 extruder heads, 3-in-1-out | 3 extruder heads, 3-in-1-out | 3 extruder heads, 3-in-1-out | 3 extruder heads, 3-in-1-out | 3 extruder heads, 3-in-1-out | 3 extruder heads, 3-in-1-out | 3 extruder heads, 3-in-1-out | 3 extruder heads, 3-in-1-out | 4 extruder heads, 4-in-1-out | 4 extruder heads, 4-in-1-out | 4 extruder heads, 4-in-1-out | 4 extruder heads, 4-in-1-out |
| Nozzle diameter | 0.6mm/0.8mm | 0.6mm/0.8mm | 0.6mm/0.8mm | 0.6mm/0.8mm | 0.4mm/0.6mm | 0.4mm/0.6mm | 0.4mm/0.6mm | 0.4mm/0.6mm | 0.4mm/0.6mm | 0.4mm/0.6mm | 0.4mm/0.6mm | 0.4mm/0.6mm |
| Nozzle temperature | 210–240 °C | 210–240 °C | 210–240 °C | 210–240 °C | 210–270 °C | 210–270 °C | 210–270 °C | 210–270 °C | 210–270 °C | 210–270 °C | 210–270 °C | 210–270 °C |
| Material | ||||||||||||
| Printing materials | HFPC | HFPC | PMMA/HFPC | PMMA/HFPC | HFPC | HFPC | HFPC | HFPC | HFPC | HFPC | HFPC | HFPC |
| UV curing | – | – | Single or Double Layer UV Curing | Single or Double Layer UV Curing | – | – | Yes | Yes | – | – | Yes | Yes |
| Filament drier | – | – | – | – | With Filament Drier | With Filament Drier | Integrated Filament Drier | Integrated Filament Drier | Integrated drying oven | Integrated drying oven | With Filament Drier | With Filament Drier |
| Workflow | ||||||||||||
| Supported file formats | CDR, DXF | CDR, DXF | CDR, DXF | CDR, DXF | CDR, DXF, STL | CDR, DXF, STL | CDR, DXF, STL | CDR, DXF, STL | CDR, DXF, STL | CDR, DXF, STL | CDR, DXF, STL | CDR, DXF, STL |
| Slicing software | INCEvery machine | |||||||||||
| Requires modelling | No | No | No modelling required | No modelling required | No | No | No | No | No | No | No | No |
| Operating systems | Windows 7 and later versions, 64-bitEvery machine | |||||||||||
| Reliability | ||||||||||||
| Bed levelling | Auto-Leveling System | Auto-Leveling System | – | – | Automatic Leveling – 240 Points | Automatic Leveling – 240 Points | – | – | – | – | Automatic Leveling – 240 Points | Automatic Leveling – 240 Points |
| Power-off continued printing | YesEvery machine | |||||||||||
| Filament break detection | YesEvery machine | |||||||||||
| Machine | ||||||||||||
| Base, as pictured | Open frame | Open frame | Closed cabinet, with the UV curing | Closed cabinet, with the UV curing | Open frame | Open frame | Closed cabinet | Closed cabinet | Open frame | Open frame | Closed cabinet | Closed cabinet |
| Machine size | 1350 × 1580 × 760 mm | 1750 × 1600 × 760 mm | 1350 × 1580 × 1430 mm | 1600 × 1610 × 1460 mm | 1310 × 1580 × 740 mm | 1710 × 1910 × 740 mm | 1310 × 1580 × 1530 mm | 1710 × 1980 × 1530 mm | 1310 × 1580 × 640 mm | 1710 × 1980 × 640 mm | 1280 × 1580 × 1530 mm | 1710 × 1980 × 1530 mm |
| Packaging size | 1390 × 1340 × 870 mm | 1800 × 1700 × 870 mm | 1390 × 1340 × 1610 mm | 1800 × 1700 × 1610 mm | 1380 × 1390 × 870 mm | 1830 × 1780 × 870 mm | 1380 × 1390 × 1640 mm | 1820 × 1790 × 1660 mm | 1380 × 1390 × 870 mm | 1830 × 1780 × 870 mm | 1380 × 1390 × 1640 mm | 1820 × 1790 × 1660 mm |
| Weight | 105 kg / 245 kg | 105 kg / 245 kg | 245 kg | 245 kg | 105 kg / 245 kg | 105 kg / 245 kg | 105 kg / 245 kg | 105 kg / 245 kg | 105 kg / 245 kg | 105 kg / 245 kg | 105 kg / 245 kg | 105 kg / 245 kg |
| LCD display | 3.5-inch colour touch screenEvery machine | |||||||||||
| Input voltage | 110V/220V, 50–60Hz, 720WEvery machine | |||||||||||
| Support | ||||||||||||
| Delivery | Arranged to your workshop in the UKEvery machine | |||||||||||
| Training | On site, at your workshop, included*Every machine | |||||||||||
| Spares | Stocked in LondonEvery machine | |||||||||||
| Support | Our London team, by phone and WhatsAppEvery machine | |||||||||||
| Warranty | 2-year warranty*Every machine | |||||||||||
Specifications based on the manufacturer's catalogue (2026); the imperial figures are our conversion. A dash means the catalogue does not state that row for the model. *Conditions apply, ask us for the terms.
Prices
Ask us for a price.
Tell us the machine and the bed size, and we'll send you a price within 1 working day.
- SG-S 3D ULTRA800 or 1200 mm bed
- Get a price: SG-S 3D ULTRA
- SG-S 3D PRO ULTRA800 or 1200 mm bed
- Get a price: SG-S 3D PRO ULTRA
- SG-S 3D L1S800 or 1200 mm bed
- Get a price: SG-S 3D L1S
- SG-S 3D L1S PRO800 or 1200 mm bed
- Get a price: SG-S 3D L1S PRO
- SG-S 3D L2S800 or 1200 mm bed
- Get a price: SG-S 3D L2S
- SG-S 3D L2S PRO800 or 1200 mm bed
- Get a price: SG-S 3D L2S PRO
Included with every machine: maintenance tools, all essential parts and wiring, the INC slicing software and on-site training in the UK*.
2-year warranty*. *Conditions apply, ask us for the terms. This does not affect your statutory rights.
Finance options available for businesses. Ask us.
— 03Which machine?
Which machine is right for me?
Three questions, and no email address needed. Your answers go in the page's link, so you can send the result to a partner or your accountant.
Your machine
Answer the three questions and we'll suggest a machine and a bed size, with the runner-up.
0 of 3 answered
— 04Questions
Buying a 3D sign printer
What is the best 3D printer for channel letters?
The one that fits your letters. For returns up to 100 mm, with printed faces in up to three colours, the SG-S 3D ULTRA; for liquid acrylic faces cured on the machine, the SG-S 3D PRO ULTRA. For returns up to 130 mm, the SG-S 3D L1S in three colours or the SG-S 3D L2S in four, each with a Pro version that adds UV curing. The three questions above suggest a machine and a bed size for your work.
How much does a channel letter 3D printer cost in the UK?
Ask us for a price: it depends on the machine and the bed size. Tell us which you're considering, or what you print, and we'll come back within 1 working day. On-site training in the UK is included with every machine*.
Do I need the 800 mm or the 1200 mm bed?
Choose by the tallest letter you make regularly. A letter that fits 800 × 800 mm prints in one piece on the smaller bed; the 1200 × 1200 mm bed takes letters up to 1200 mm, or more of a set in one run. Letters bigger than the bed are printed in sections and joined, on either bed.
What does the Pro version of a model add?
UV curing, on every Pro model. The SG-S 3D PRO ULTRA adds liquid acrylic UV curing, single or double layer, to the ULTRA. The SG-S 3D L1S PRO and the SG-S 3D L2S PRO add UV curing to the L1S and L2S, on a closed cabinet, 1530 mm tall, with the same returns, colours, recommended speed and file formats. The comparison above has every row, model by model.
ULTRA, L1S or L2S?
The L1S and the L2S print deeper returns (130 mm against 100 mm), have a faster recommended speed (up to 300 mm/s against 120 mm/s), a filament drier, and take STL files as well as CDR and DXF. The L2S prints four colours in one print, the L1S three. If your letters are rarely deeper than 100 mm and three colours will do, the ULTRA, our entry machine, does the job.
Is training included?
Yes. On-site training in the UK is included with every machine*: we come to your workshop and get your team printing. Spare parts are stocked in London, and our team is on the phone and WhatsApp.
Can I see one print before I buy?
Yes. Book a demo at our showroom at 17 Burnt Oak Broadway, Edgware, London HA8 5LD, a short walk from Burnt Oak station on the Northern line. Visits are by appointment.
Is finance available?
Finance options available for businesses. Ask us.
— 05Sculpture
Sculpture 3D printers
We also sell four large format printers for sculptures, props, displays and large parts, with build volumes from 500 × 500 × 600 mm to 1000 × 1000 × 1050 mm. They print from STL, GCODE or OBJ files with general slicing software rather than the one-click letter workflow, so they have their own pages and their own comparison.
SG-P556 T
- Build volume
- 500 × 500 × 600 mm
- Print head
- 1 colour · single nozzle, dual optional
- Speed up to
- 500 mm/s
SG-INT P1000
- Build volume
- 1000 × 1000 × 1000 mm
- Print head
- Single nozzle, dual optional
- Speed up to
- 500 mm/s

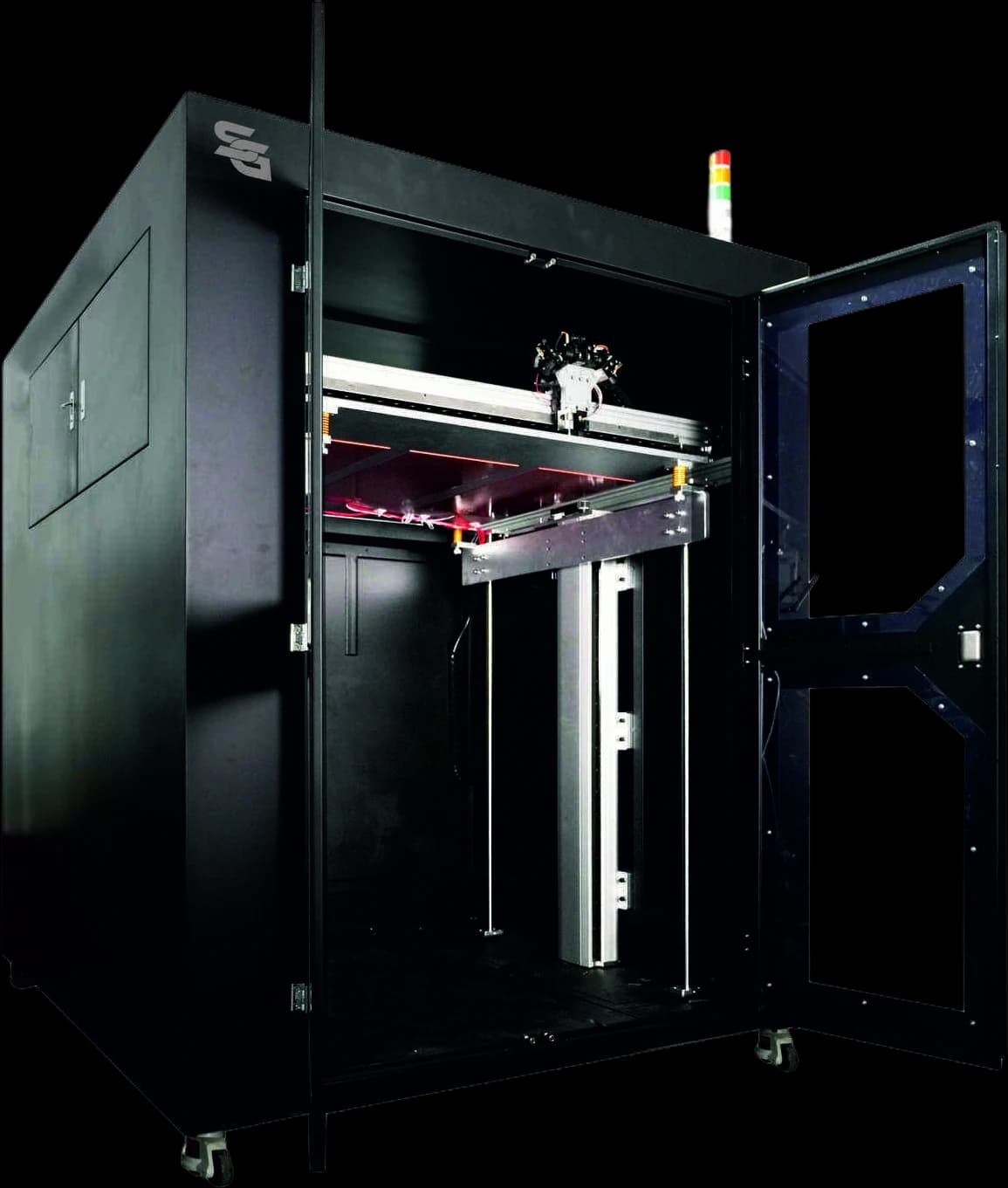

SG-T1 100
- Build volume
- 1000 × 1000 × 1050 mm
- Print head
- 4 colours · single nozzle
- Speed up to
- 350 mm/s
SG-T1 60
- Build volume
- 600 × 600 × 800 mm
- Print head
- 4 colours · single nozzle
- Speed up to
- 350 mm/s
Talk to us
Come and see them print.
Book a demo at our Edgware showroom, or ask for a price on any machine and bed size. We'll help you pick the right machine, not the most expensive one.
- Showroom in Edgware
- On-site training included*
- Support and spares from London
- Real letters from our machines
- Call0203 620 1605
- WhatsApp07970 907010
- Emailsales@sg3dprinters.com
- Showroom17 Burnt Oak Broadway, Edgware, London HA8 5LD, by appointment
