SG-S 3D L1S
3-colour channel letter 3D printer with a filament drier · returns up to 130 mm
The SG-S 3D L1S is a channel letter 3D printer for deeper letters: it prints letter bodies up to 130 mm deep in up to three colours on an 800 × 800 or 1200 × 1200 mm bed, at a recommended speed of up to 300 mm/s, with a filament drier. On-site training in the UK is included*. Ask us for a price.
- Showroom in Edgware
- On-site training included*
- Support and spares from London
- Real letters from our machines
Included: maintenance tools, all essential parts and wiring, INC software, on-site training in the UK*. 2-year warranty*. *Conditions apply, ask us for the terms. WhatsApp us about the L1S.
— 01Overview
Deeper returns, with a filament drier.
The L1S prints letter bodies up to 130 mm deep in up to three colours, at a recommended speed of up to 300 mm/s, with a filament drier and 240-point automatic levelling. It takes CDR, DXF or STL files, on the 800 × 800 mm or the 1200 × 1200 mm bed.
- Build area
- 800 × 800 × 130 mm
- Returns up to
- 130 mm
- Colours
- 3, in one print
- Faces
- Printed in the same run
- Files
- CDR, DXF or STL, no 3D modelling
- Speed up to
- 300 mm/s
- Filament drier
- With filament drier
- Bed levelling
- Automatic, 240 points
- Machine size
- 1310 × 1580 × 740 mm
Download spec sheetPDF, one page
— 02Specs
Full specification
Based on the manufacturer's catalogue (2026).
| Forming technology | Fused Deposition Modelling (FDM) |
|---|---|
| Build volume, 800 bed | 800 × 800 × 130 mm |
| Build volume, 1200 bed | 1200 × 1200 × 130 mm |
| Layer resolution | 100 µm |
| Recommended printing speed | 40–300 mm/s |
| Extruder head | 3 extruder heads, 3-in-1-out |
|---|---|
| Nozzle diameter | 0.4mm/0.6mm |
| Nozzle temperature | 210–270 °C |
| Printing materials | HFPC |
|---|---|
| Filament drier | With Filament Drier |
| Supported file formats | CDR, DXF, STL |
|---|---|
| Slicing software | INC |
| Requires modelling | No |
| Operating systems | Windows 7 and later versions, 64-bit |
| Bed levelling | Automatic Leveling – 240 Points |
|---|---|
| Power-off continued printing | Yes |
| Filament break detection | Yes |
| Machine size, 800 bed | 1310 × 1580 × 740 mm |
|---|---|
| Machine size, 1200 bed | 1710 × 1910 × 740 mm |
| Packaging size, 800 bed | 1380 × 1390 × 870 mm |
| Packaging size, 1200 bed | 1830 × 1780 × 870 mm |
| Weight | 105 kg / 245 kg |
| LCD display | 3.5-inch colour touch screen |
| Input voltage | 110V/220V, 50–60Hz, 720W |
|---|
— 03Letters it makes
What it prints.
Deeper returns, a faster recommended speed and a filament drier on the machine, in up to three colours.

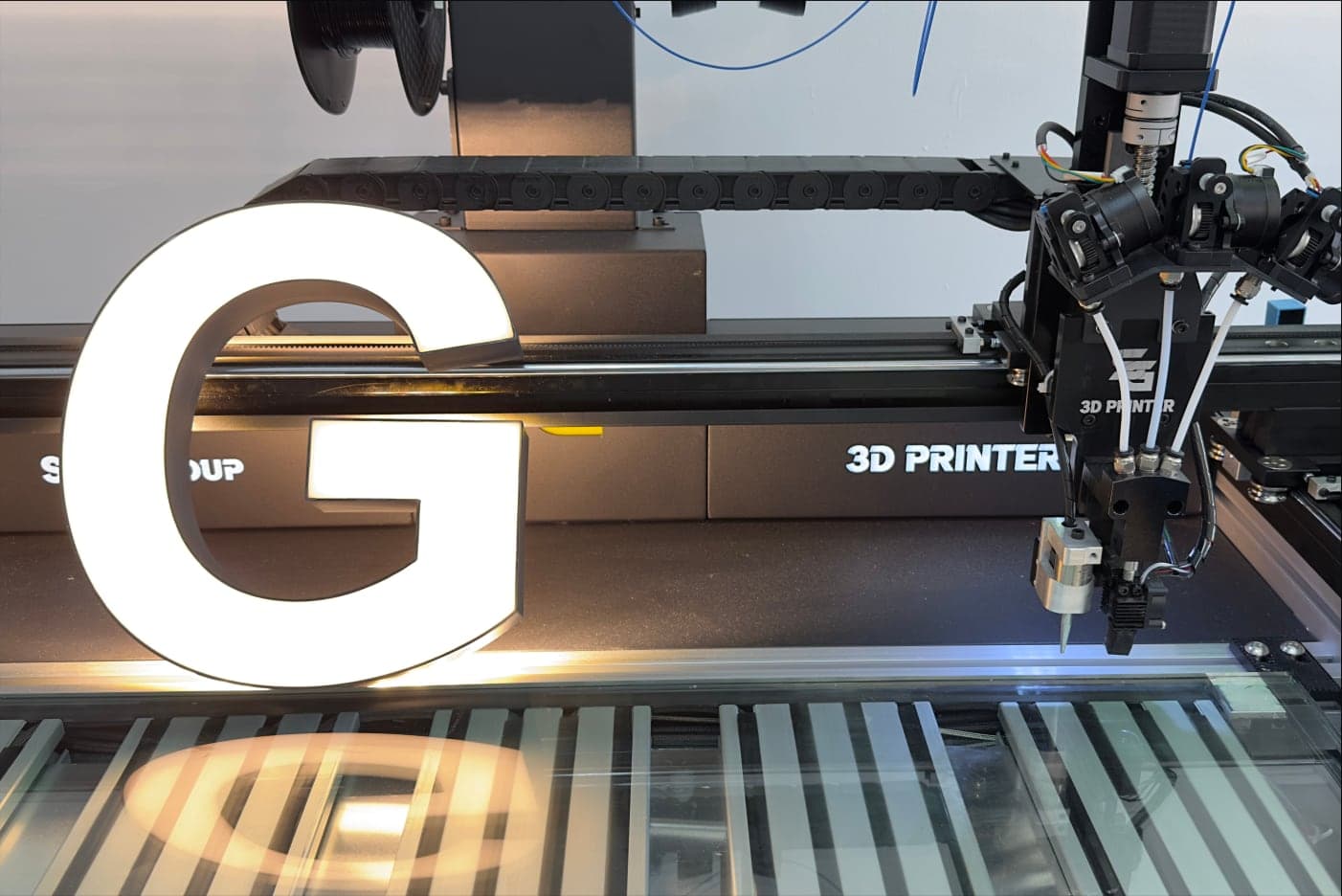

A finished letter, lit on the printer
Side-lit, brushed face
It suits
- Returns up to 130 mm, deeper than the ULTRA and PRO ULTRA print
- Face-lit, halo and side-lit letters with printed faces
- Up to three colours in the same letter
- Long runs, with the filament dried on the machine
— 04Materials
One letter filament, dried on the machine.
HFPC is the letter filament for the SG-S range: a modified polycarbonate and PETG blend, rated from −40 °C to 65 °C and resistant to UV and oxidation. The L1S comes with a filament drier.
- Blend
- Modified PC + PETG
- Service range
- −40 °C to 65 °C
- Outdoors
- UV and oxidation resistant
- Nozzle temperature
- 215–250 °C
- Filament drier
- With filament drier
Faces
Printed faceOn the L1S
Printed in the same run as the returns, in up to three colours.
Sheet acrylicOn the L1S
Cut acrylic fitted to the printed body after the print, as on a fabricated letter.
— 05Training & support
What's in the box, and after
From us, in the UK
- Delivery
- Arranged to your workshop in the UK
- Training
- On site, at your workshop, included*
- Spares
- Stocked in London
- Support
- Our London team, by phone and WhatsApp
- Warranty
- 2-year warranty*
*Conditions apply, ask us for the terms. This does not affect your statutory rights.
In the box
- The L1S, with the bed size you choose
- Maintenance tools
- All essential parts and wiring
- INC slicing software
— 06Finance
Finance options available for businesses. Ask us.
Finance— 07Compare
Against its neighbours
| L1SThis machine | L1S PRO | L2S | |
|---|---|---|---|
| Returns up to | 130 mm | 130 mm | 130 mm |
| Colours | 3 | 3 | 4 |
| UV curing | – | Yes | – |
| Recommended speed | 40–300 mm/s | 40–300 mm/s | 40–300 mm/s |
| Filament drier | With Filament Drier | Integrated Filament Drier | Integrated drying oven |
| Base, as pictured | Open frame | Closed cabinet | Open frame |
| Files | CDR, DXF, STL | CDR, DXF, STL | CDR, DXF, STL |
| Price | Get a price: SG-S 3D L1S | Get a price: SG-S 3D L1S PRO | Get a price: SG-S 3D L2S |
— 08FAQ
Questions about the L1S
L1S or L1S PRO?
The SG-S 3D L1S PRO is the L1S's Pro version: it adds UV curing. The catalogue pictures it on a closed cabinet, 1530 mm tall against 740 mm, with an integrated filament drier, and gives it the same returns, colours, recommended speed and file formats as the L1S.
L1S or L2S?
The catalogue gives both the same returns, beds, recommended speed and file formats. The SG-S 3D L2S prints four colours in one print; the L1S prints three.
ULTRA or L1S?
The L1S prints deeper returns (130 mm against 100 mm), has a faster recommended speed (up to 300 mm/s against 120 mm/s), a filament drier and 240-point automatic levelling, and also takes STL files. If your letters are rarely deeper than 100 mm, the SG-S 3D ULTRA, our entry machine, does the job for less.
Can it run overnight?
Yes. It is built to run unattended. If the power drops it carries on where it left off, and it detects a broken filament.
Will it fit through my door?
With the 800 bed it is packed at 1380 × 1390 × 870 mm, and with the 1200 bed at 1830 × 1780 × 870 mm. Send us a photo of your doorway and we'll check.
How much is the L1S?
Ask us for a price for the bed size you want, 800 × 800 or 1200 × 1200 mm, and we'll come back within 1 working day.
